LSCD-4M-30W-5CCT
4” LED Module 30W Power Tuning (18W/24W/30W), 90 CRI, 10 Selectable 5CCT (27/30/35/40/50K)

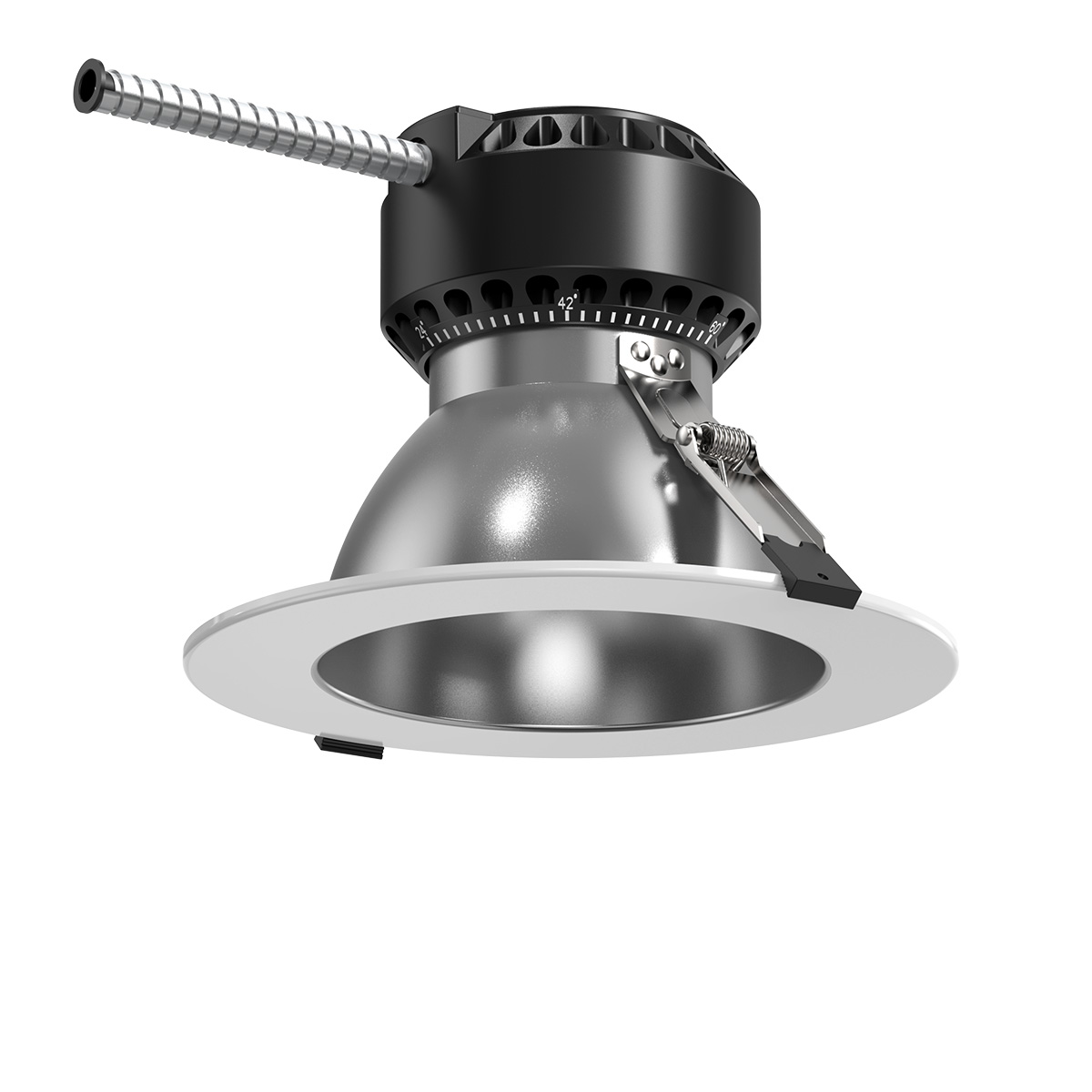

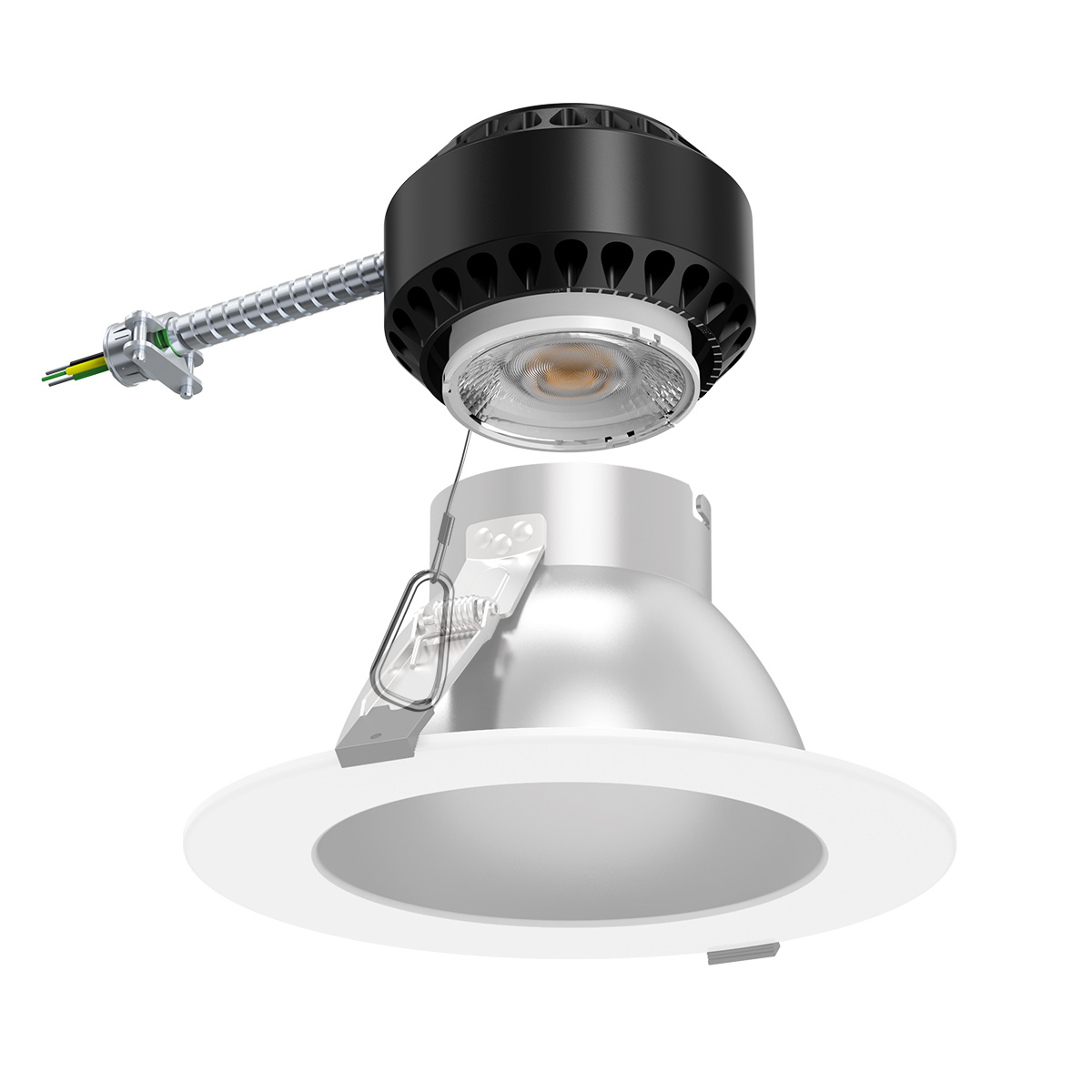

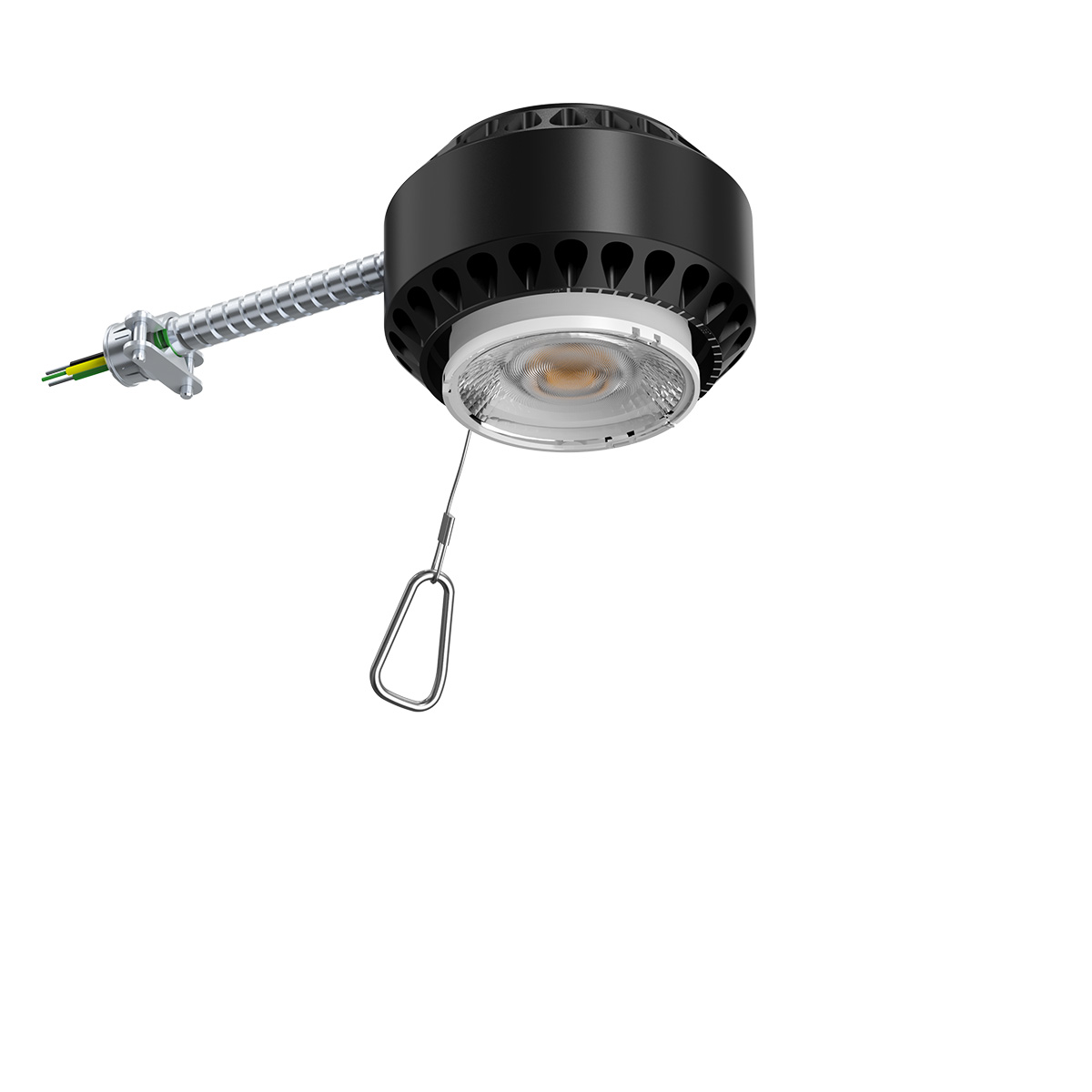

4” (110mm) LED aluminum die-casting heatsink module includes two tunable switches; selectable Lumens allows the end user to determine the wattage input and selectable 5CCT allows changing the color temperature appearance. Compatible with 4″/ 6” / 8” / 10” Trim with two tension steel spring clips and can be installed without any frame-in or housing.
FEATURES
· 3 Wattage Selectable – Tunable switch to adjust power output: 18W/24W/30W
· 5 CCT Selectable – Tunable switch to adjust CCT output: 2700K/3000K/3500K/4000K/5000K
· Dual Beam Angle – Twist lens to change beam angle output: 24º/60º
· COB light source
· 1800lm/2400lm/2700lm output @ 90CRI
· 100-277V/120-347V AC Voltage @50/60Hz
· 0-10V and triac dimming, 5-100% smooth dimming
· IC-rated for 1,800 or 2,700lm, non-IC for others
· 5 years limited warranty
· ETL/FCC/RoHS/JA8/ENERGY STAR listed
· Suitable for wet locations
Lumen
Wattage
Dimming
Voltage
CCT
Lumen
Wattage
Dimming
Voltage
CCT
