LSCI-HB18WT3CCT

1.5' High Bay LED Linear Light

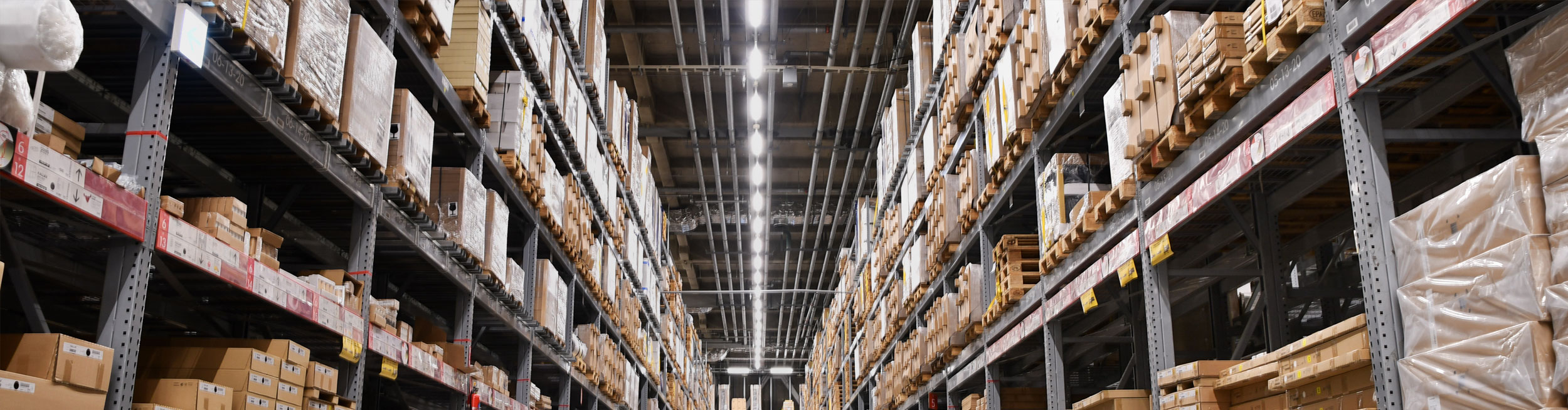

High Bay LED Linear light featuring a motion sensor is ideal for indoor lighting, warehouse, supermarket, gymnasiums, garage, office or retail. Compatible with LED dimmer switches, integrated LED shop lights reduce energy use by up to 80% and eliminate maintenance costs. Increase energy efficiency, with automatic shutoff when rooms are not in use. With 3 wattages selectable and 3 CCTs selectable technology, meaning 1 model in stock with 9 solutions in hand. The slim profile design thanks to the die- cast aluminum heat-sink, make the fixture in a smaller size, is very helpful for freight and warehouse cost.

FEATURES
· Selectable wattages: 1FT.: 100W/130W/160W; 1.5FT.: 160W/200W/240W; 2FT.: 180W/240W/320W
· Field selectable CCT: 3500K / 4000K / 5000K
· 140lm/W at 80 CRI
· 0-10V dimming
· Optional V-Hook, 3/4” Conduit or Surface Mounting
· PIR Motion Sensor – Easy On/Off
· Flicker free
· Durable aluminum die-cast
· 5-year warranty
· cULus & DLC5.1 Premium, FCC listed

SPEC SHEET
IES FILE
SELL SHEET
INSTALLATION

Lumen

140lm/W

Wattage

160W/200W/240W

Dimming

0-10V

Voltage

120V

CCT

3500K/4000K/5000K

Lumen

140lm/W

Wattage

160W/200W/240W

Dimming

0-10V

Voltage

120V

CCT

3500K/4000K/5000K

3.5 inch

3.5 inch
